Role Based Access Control

LogZilla's Role-Based Access Control (RBAC) system provides granular control over user access to system resources, data, and functionality. RBAC enables administrators to create groups with specific permissions and restrict user access based on their organizational roles and responsibilities.

Important: RBAC must be enabled in the system settings before groups and permissions can be configured. Navigate to Settings → System Settings → Generic and ensure RBAC_ENABLED is set to true.

RBAC Overview

LogZilla's RBAC system provides comprehensive access control through:

• Group-Based Permissions: Organize users into groups with specific access rights
• UI Component Control: Restrict access to dashboards, search, triggers, and other interface elements
• Host-Based Filtering: Limit data visibility to specific hosts, IP ranges, or subnets
• User Management: Assign users to multiple groups with inherited permissions
• Granular Controls: Fine-tune access to individual system features

Managing Groups and Permissions

Web Interface Management (Recommended)

The recommended approach for managing RBAC is through the LogZilla web interface, which provides a comprehensive and user-friendly experience:

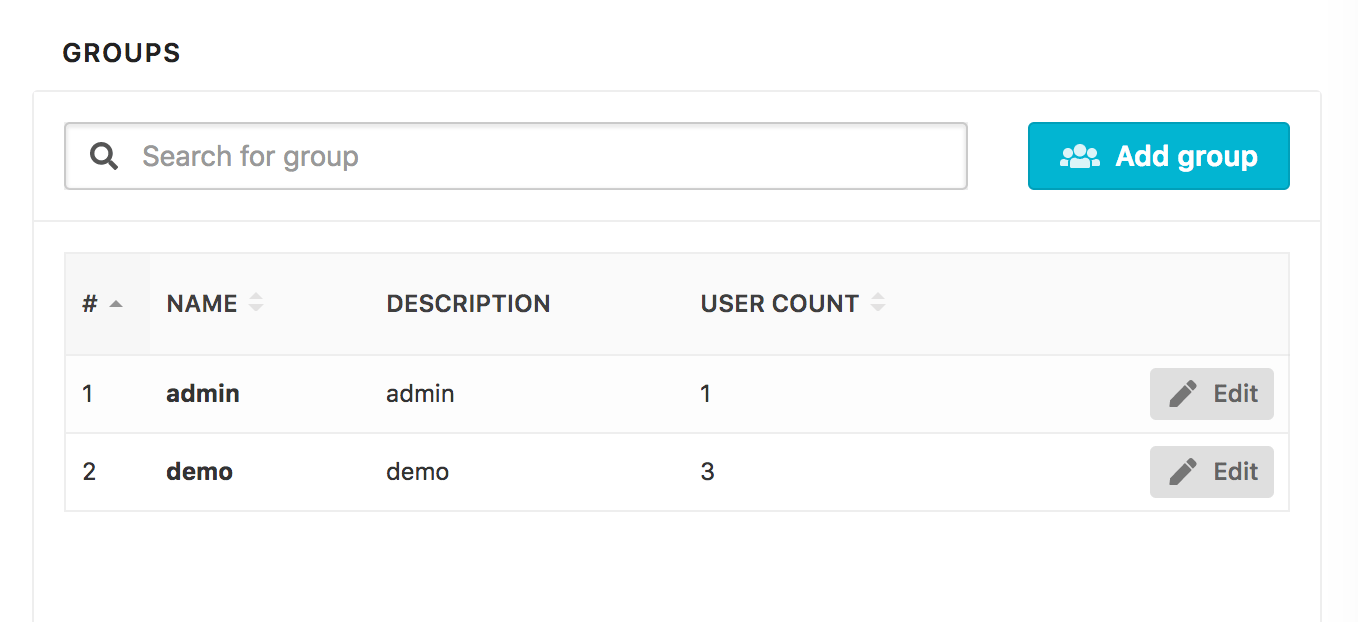

Accessing RBAC Settings

1. Navigate to User Management:
   • Log into LogZilla as an administrator
   • Go to Settings → Users & Groups
   • Select the Groups tab to view existing groups

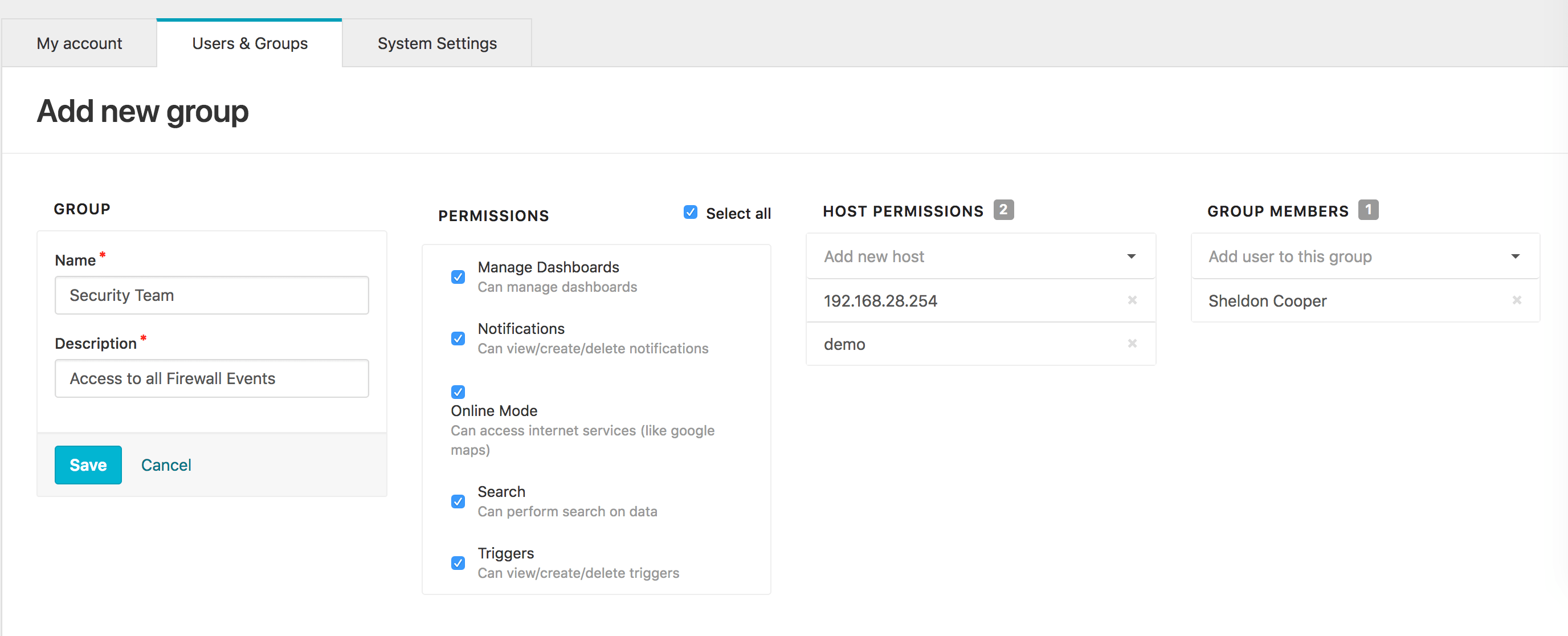

Creating New Groups

1. Start Group Creation:

   • Click the "Add group" button in the Groups interface
   • This opens the comprehensive group configuration form

2. Configure Basic Group Information:

   • Name: Enter a descriptive group name (e.g., "Security Team", "Network Operators")
   • Description: Provide a detailed description of the group's purpose

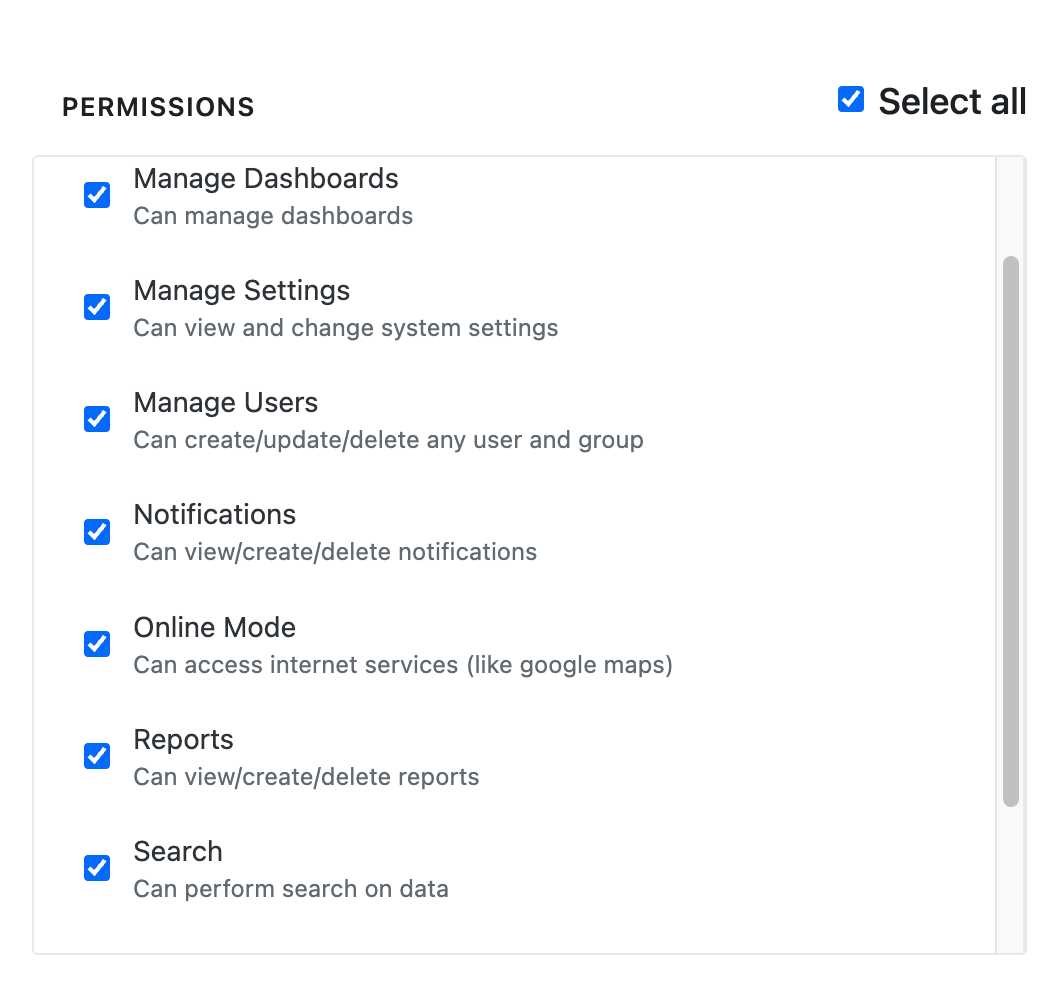

3. Set UI Permissions:

   • Individual Permissions: Check specific permissions for granular control:
     • Manage Dashboards: Create, edit, and delete dashboards
     • Notifications: View and manage alert notifications
     • Online Mode: Access external internet services
     • Search: Perform log searches and queries
     • Triggers: Create and manage automated triggers
   • Select All: Enable all available UI permissions for full access
   • Permission Descriptions: Each permission includes helpful descriptions

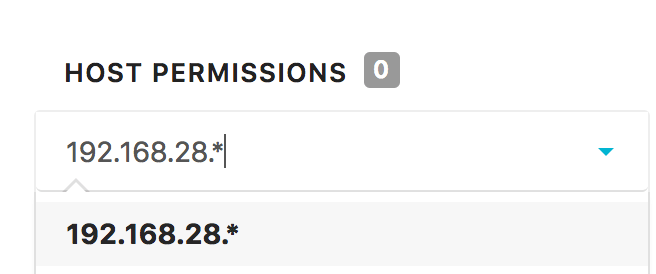

4. Configure Host Permissions:

   • Add Specific Hosts: Enter individual hostnames or IP addresses
   • Use Wildcards: Implement pattern-based filtering:
     • 192.168.28.* - Entire subnet access
     • web-server-* - All hosts matching pattern
     • *.company.com - All hosts in domain
   • Multiple Entries: Add multiple host patterns for complex filtering

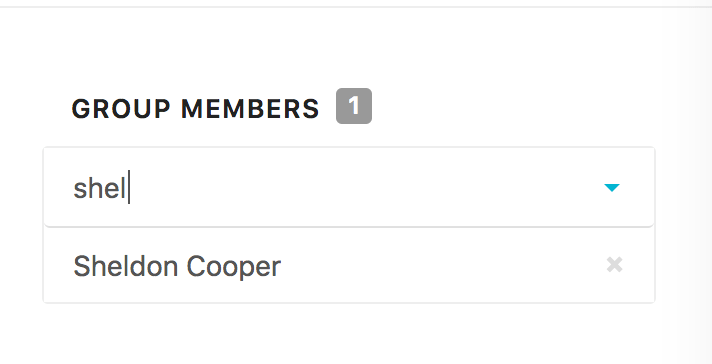

5. Assign Group Members:

   • Search Users: Type to search for existing users
   • Select Members: Choose users to add to the group
   • Multiple Selection: Add multiple users simultaneously
   • User Display: Shows full names for easy identification



6. Save and Apply:

   • Click "Save" to create the group
   • Changes take effect immediately
   • Users receive new permissions upon next login

Advantages of Web Interface:

• Visual permission management with clear descriptions
• Real-time validation of host patterns and user selections
• Intuitive group creation with guided workflows
• Immediate feedback on configuration changes
• No command-line knowledge required
• Built-in help text for each permission type

Advanced: Command Line Management

Note: Command-line RBAC management is provided for advanced users who specifically require shell access or automated group management. Most users should use the web interface above for better user experience and validation.

For advanced users who prefer command-line administration:

bash
Wrap: OnCopyFullscreen
# Enable RBAC system-wide
logzilla settings update RBAC_ENABLED=true

# View current RBAC settings
logzilla settings list generic | grep RBAC

# Note: Group creation and management is primarily done through the web interface
# Command-line group management tools may be limited

Permission Types and Capabilities

UI Permissions

Host Permissions

Exact Matching:

• 192.168.1.100 - Specific IP address
• web-server-01 - Specific hostname
• mail.company.com - Specific FQDN

Wildcard Patterns:

• 192.168.1.* - Entire subnet (192.168.1.0/24)
• 192.168.*.* - Larger subnet range
• web-server-* - All hosts starting with "web-server-"
• *.company.com - All hosts in company.com domain
• *database* - Any host containing "database"

Multiple Patterns:

• Combine multiple patterns for complex filtering
• Each pattern is evaluated independently
• Users see logs from ANY matching pattern

User Management

Assigning Users to Groups

1. During Group Creation: Add users when creating new groups
2. Edit Existing Groups: Modify group membership anytime
3. Multiple Group Membership: Users can belong to multiple groups
4. Permission Inheritance: Users inherit ALL permissions from ALL groups

User Permission Resolution

Additive Permissions: Users receive the union of all group permissions Host Access: Users can access hosts from ALL assigned groups UI Access: Users get the broadest UI permissions from any group

Best Practices

Security

• Principle of Least Privilege: Grant minimum necessary permissions
• Regular Audits: Periodically review group memberships and permissions
• Role-Based Design: Create groups based on job functions, not individuals
• Host Segmentation: Use specific host patterns rather than broad wildcards

Organization

• Descriptive Names: Use clear, meaningful group names
• Detailed Descriptions: Document group purposes and intended users
• Logical Grouping: Organize permissions by department or function
• Documentation: Maintain records of RBAC decisions and changes

Performance

• Efficient Patterns: Use specific host patterns to reduce processing overhead
• Group Optimization: Avoid excessive group proliferation
• Regular Cleanup: Remove unused groups and inactive users

Common Use Cases

Network Operations Team

Permissions: Search, Dashboards, Notifications Host Access: router-*, switch-*, firewall-* Purpose: Monitor network infrastructure

Security Team

Permissions: All UI permissions Host Access: * (all hosts) Purpose: Full system access for security monitoring

Application Support

Permissions: Search, Dashboards Host Access: app-server-*, web-server-* Purpose: Monitor specific application infrastructure

Database Administrators

Permissions: Search, Dashboards, Triggers Host Access: db-*, *database* Purpose: Monitor and manage database systems

Troubleshooting

Common Issues

Users Cannot Access Expected Data:

1. Verify RBAC is enabled in system settings
2. Check user group memberships
3. Verify host permission patterns
4. Confirm UI permissions are granted

Host Patterns Not Working:

1. Test patterns with specific examples
2. Verify wildcard syntax (* for any characters)
3. Check for typos in hostnames or IP addresses
4. Ensure patterns match actual log data

Permission Changes Not Applied:

1. Users may need to log out and back in
2. Verify group configuration was saved
3. Check for conflicting group memberships
4. Confirm RBAC system is enabled

Verification

bash
Wrap: OnCopyFullscreen
# Check if RBAC is enabled
logzilla settings list generic | grep RBAC_ENABLED

# Verify user can see expected hosts in search results
# (This verification is done through the web interface)

Example: Security Team Configuration

This example demonstrates creating a comprehensive security team group:

Group Configuration:

• Name: "Security Team"
• Description: "Full access for security monitoring and incident response"
• UI Permissions: All permissions enabled
• Host Permissions: * (all hosts)
• Members: Security analysts and incident responders

Result: Security team members can:

• Access all system logs from any host
• Create and manage dashboards
• Set up automated triggers for security events
• Receive and manage security notifications
• Perform comprehensive searches across all data

In this configuration, a user like "Sheldon Cooper" assigned to a group with 192.168.28.* host permissions would only see log events from devices in the 192.168.28.0/24 subnet, providing effective data segmentation for role-based access control.
