Event Correlation Overview

Event correlation identifies patterns, relationships, and anomalies across multiple log events over time. LogZilla provides both stateless and stateful correlation methods to detect complex scenarios that single-event analysis cannot identify.

Before you begin

Enable EC (required):

bash
sudo logzilla settings update SEC_ENABLED=true

Enable Forwarder (required when routing events to EC instances):

bash
sudo logzilla settings update FORWARDER_ENABLED=true

File locations:
- EC rules: /etc/logzilla/sec/<instance>/rules/
- Forwarder configs: /etc/logzilla/forwarder.d/
Apply changes:
- Forwarder configs: logzilla settings reload forwardermodule
- EC rule changes: logzilla settings reload sec
- Both together: logzilla settings reload sec forwardermodule
Validate forwarder configuration:
```
bash
logzilla forwarder print
```
This command displays the parsed forwarder configuration and reports any syntax errors.

Verify EC container:

bash
sudo docker ps | grep lz_sec

Container Logging

EC rules use environment variables $SYSLOG_HOSTNAME and $SYSLOG_BSD_TCP_PORT to target the LogZilla syslog receiver
The -T flag enables TCP transport; omit for UDP if TCP is not supported
EC runs in a container with limited utilities; use inline Perl for complex operations rather than external commands
DNS resolution occurs within the EC container; ensure proper DNS configuration for hostname lookups

Core Correlation Concepts

Event triggers: Conditions that initiate correlation analysis
Event filters: Criteria that determine which events to correlate
Event pairing: Associations between multiple related events
Time windows: Duration constraints for event relationships
Thresholds: Frequency or count-based correlation triggers
Suppression: Logic to reduce noise and prevent alert storms

LogZilla Correlation Architecture

LogZilla implements a two-tier correlation system:

Stateless Correlation (Triggers)

LogZilla Triggers provide immediate, single-event correlation:

Events are matched against trigger filters in real-time
Actions execute immediately when conditions are met
Suitable for alerting and immediate responses
Managed through the LogZilla web interface or API

Stateful Correlation

LogZilla Event Correlation enables advanced, multi-event correlation:

Maintains state across multiple events over time
Supports complex patterns like event pairs, thresholds, and sequences
Handles scenarios requiring memory of past events
Integrated via the Script Server for scalable processing

Intro to Event Correlation

Event Processing Flow

Event Ingestion: Incoming events (syslog, snmp, httpx, webhooks, etc.) are received and forwarded to ParserModule
Parsing: Events are normalized and enriched with user tags via Parser Rules (YAML), Lua scripts, or Apps.
Trigger Evaluation: QueryModule matches events against active triggers
Action Execution: Matched triggers execute configured actions
Event Correlation Processing: Complex correlation rules process events via Script Server
Response: Correlated events inject a new event back into LogZilla for output triggering (Email, Webhook, Scripts, etc.)

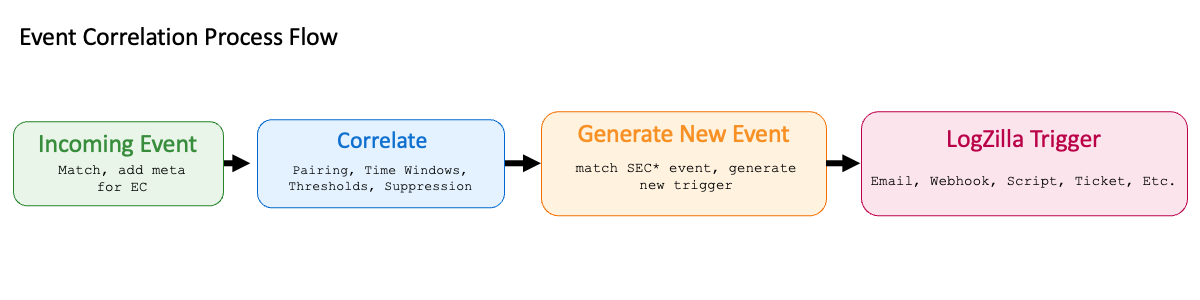

Event Correlation Process
Flow

Scalable Correlation Design

LogZilla's architecture addresses traditional EC limitations:

Selective forwarding: Only relevant events are sent to EC for processing
Distributed processing: Script Server manages multiple EC instances
Event filtering: Triggers pre-filter events before correlation analysis
Resource optimization: Correlation load is distributed and controlled

Use Cases

Network Infrastructure

Interface flapping: Detect rapid up/down state changes
Device failures: Correlate multiple error conditions
Security incidents: Identify attack patterns across devices

System Monitoring

Service failures: Detect cascading service dependencies
Performance degradation: Correlate resource exhaustion indicators
Unauthorized access: Track suspicious login patterns

Application Monitoring

Error clustering: Group related application errors
Transaction failures: Correlate multi-step process failures
Capacity planning: Identify usage pattern trends

Getting Started

Event correlation in LogZilla involves:

Configure triggers: Create stateless correlation rules for immediate responses
Define EC rules: Develop stateful correlation patterns for complex scenarios
Test correlation: Verify rules work with sample events
Monitor performance: Ensure correlation processing scales appropriately

LogZilla Pre-Processing Performance Advantages

LogZilla's architecture provides significant performance benefits for event correlation:

Traditional EC Approach Limitations

Complex regex parsing: EC must parse raw log messages with CPU-intensive regex
Duplicate parsing logic: Same parsing repeated across multiple EC rules
Limited context: Only raw message text available for correlation
Performance bottlenecks: EC spends most CPU time on text parsing, not correlation
Alert fatigue: Thousands of individual event alerts daily
Missed attack patterns: Single events don't show attack progression
Manual correlation: Analysts must manually connect related events

LogZilla + EC Architecture Benefits

Pre-extracted fields: LogZilla's Lua engine extracts fields once, EC accesses via environment variables
5x-10x performance improvement: EC focuses on correlation logic instead of parsing
Rich context: EC receives structured data like EVENT_USER_TAGS_PAM_USER_TRACKING, EVENT_USER_TAGS_SRCIP
Centralized parsing: One optimized parsing engine serves all LogZilla features
Simplified rules: EC rules use simple environment variable checks instead of complex regex
Attack pattern detection: Multi-stage attack identification
Intelligent response: Context-aware automation based on external data
Reduced noise: Correlation replaces individual event alerts
Separation of concerns: EC focuses on correlation, triggers handle actions

Example Performance Comparison

Traditional EC (inefficient):

text
pattern=.*sshd.*Failed password for (\w+) from ([\d.]+) port (\d+)

LogZilla Pre-Processing (efficient):

text
pattern=AUTH_FAILED
# Access: $ENV{EVENT_USER_TAGS_PAM_USER_TRACKING}, $ENV{EVENT_USER_TAGS_SRCIP}

Script Execution Context

EC vs LogZilla Trigger Scripts

Critical Distinction: Scripts called by EC and LogZilla Triggers receive data differently:

EC `shellcmd` Scripts

Data Access: Command-line arguments ($1, $2, $3, etc.)
Usage: shellcmd (/path/to/script.sh "%variable1" "%variable2")
Script: USERNAME="$1"; SRC_IP="$2"

LogZilla Trigger Scripts

Data Access: Environment variables ($EVENT_*)
Usage: exec_script: true in trigger configuration
Script: USERNAME="$EVENT_USER_TAGS_PAM_USER_TRACKING"

Important: Do not mix these execution contexts. EC scripts cannot access $EVENT_* environment variables.

Quick reference

SEC rules (inside .sec files): access event fields via $ENV{EVENT_*} and $ENV{EVENT_USER_TAGS_*}.

SEC shellcmd scripts: receive values as positional arguments ($1, $2, ...). Pass required variables explicitly from the rule, for example: shellcmd (/path/to/script.sh "%username" "%src_ip").

LogZilla Trigger scripts: receive $EVENT_* environment variables (e.g., $EVENT_USER_TAGS_PAM_USER_TRACKING).

Prerequisites

Event Correlation implementation requires:

LogZilla server with administrative access
EC feature enabled in LogZilla settings
Basic understanding of regular expressions
SSH access to the LogZilla server

Enabling EC

Check EC Status

Verify if EC is enabled on the LogZilla server:

bash
sudo logzilla settings list | grep SEC_ENABLED

Enable EC

If EC is not enabled, activate it:

bash
sudo logzilla settings update SEC_ENABLED=true

Once EC is enabled, the container starts automatically. This process takes approximately one minute.

Enable Event Forwarding

For advanced correlation scenarios that require routing specific events to EC instances, enable the forwarder module:

bash
sudo logzilla settings update FORWARDER_ENABLED=true

Verify EC Container

Verify the container has started:

bash
sudo docker ps | grep lz_sec

The output should show the EC container is running:

text
lz_sec    logzilla/script-server:v6.37.4   "/usr/bin/run_script…"   About a minute ago   Up About a minute

EC Configuration Management

Rule Loading

EC automatically loads new rules from /etc/logzilla/sec/ when started. Verify EC is running:

bash
sudo docker ps | grep lz_sec

Verify Rule Processing

Check EC logs to confirm rules are loaded:

bash
sudo docker logs lz_sec | tail -20

Look for messages indicating successful rule loading.

Apply Configuration Changes

After making changes to EC rules, restart the EC container to load the new configuration:

bash
sudo logzilla restart -c sec

Troubleshooting

EC Not Processing Events

Check EC container status:

bash
sudo docker ps | grep lz_sec

Review EC logs:

bash
sudo docker logs lz_sec

Verify rule syntax:

bash
sudo docker exec -it lz_sec sec --testonly --conf=/etc/logzilla/sec/rule-file.sec

Events Not Correlating

Verify test events are reaching LogZilla:
- Check Events page for original test events
- Ensure expected program names appear
Check pattern matching:
- Ensure event format matches EC rule patterns
- Use exact string matching when possible for better performance

No Correlation Output

Verify EC can send events back to LogZilla:

bash
sudo docker exec -it lz_sec printenv | grep SYSLOG

Test logger connectivity from EC container:

bash
sudo docker exec -it lz_sec /usr/bin/logger -T -n $SYSLOG_HOSTNAME -P $SYSLOG_BSD_TCP_PORT -t EC-TEST "Test message"

Technical Notes

EC rules use environment variables $SYSLOG_HOSTNAME and $SYSLOG_BSD_TCP_PORT to target the LogZilla syslog receiver
The -T flag enables TCP transport; omit for UDP if TCP is not supported
EC runs in a container with limited utilities; use inline Perl for complex operations rather than external commands
DNS resolution occurs within the EC container; ensure proper DNS configuration for hostname lookups
